十二头高速贴片机SMT贴片机Pick and Place machine 12heads

发布日期:2022-03-31浏览次数:4171 次

全自动高速贴片机

Automatic high-speed module mounter

一、产品介绍

Product introduction

   XJS-T12是一款高速全自动在线式贴片机,全新的硬件和软件系统,全面解决了对贴装高速度和精度的要求,核心部件采购原装进口,精度更高,稳定性更好,提高了生产效率和良品率,大大降低了客户成本,目前在深圳、中山、江苏、浙江等已大量实用于客户工厂。

XJS-T12 is a high-speed automatic on-line Mounter with brand-new hardware and software system, which comprehensively solves the requirements for high speed and precision of mounting. The core components are purchased and imported with original packaging, which has higher precision and better stability, improves production efficiency and yield, and greatly reduces customer costs. At present, it is in Shenzhen, Zhongshan, Jiangsu Zhejiang has been widely used in customer factories.

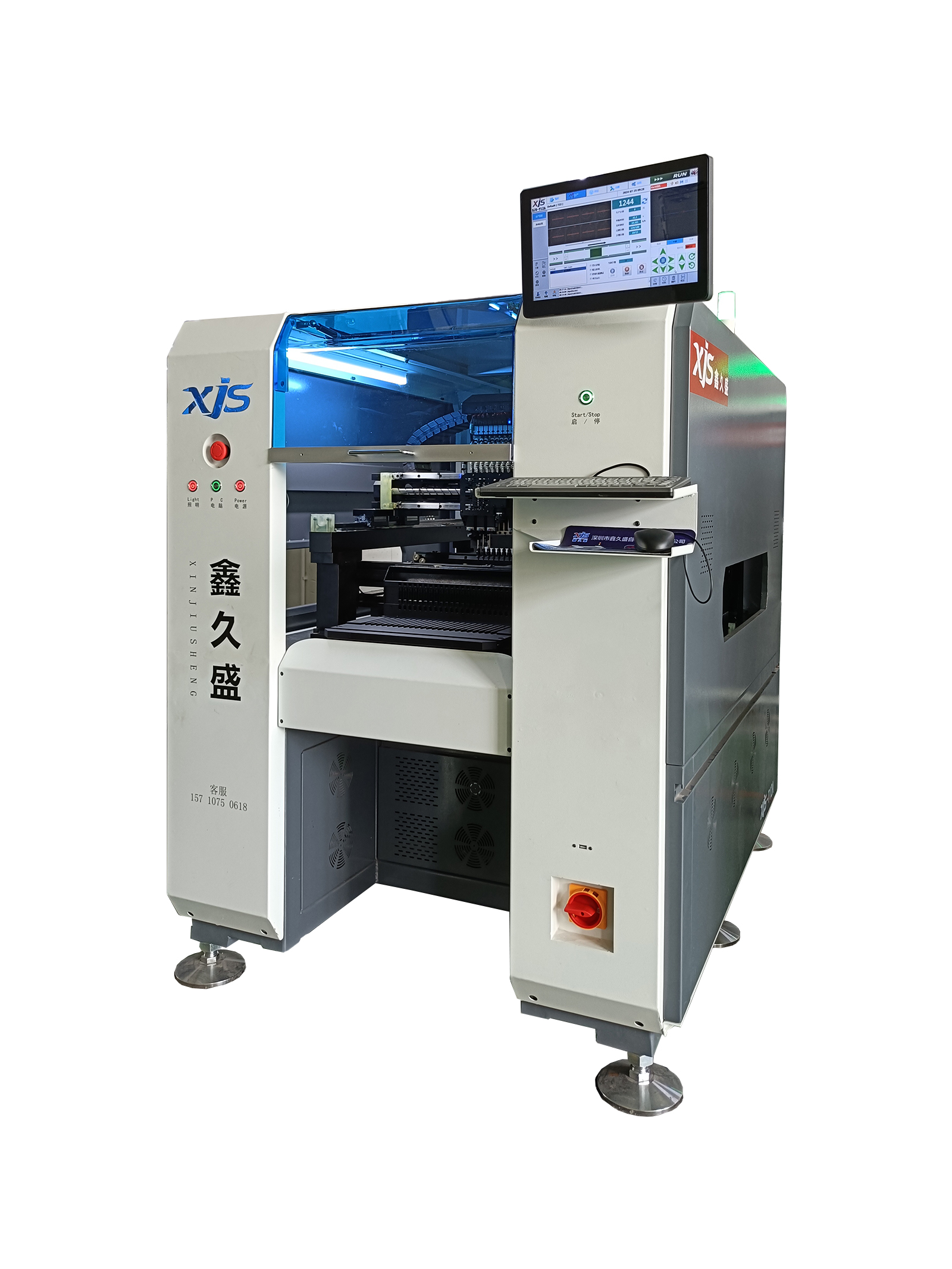

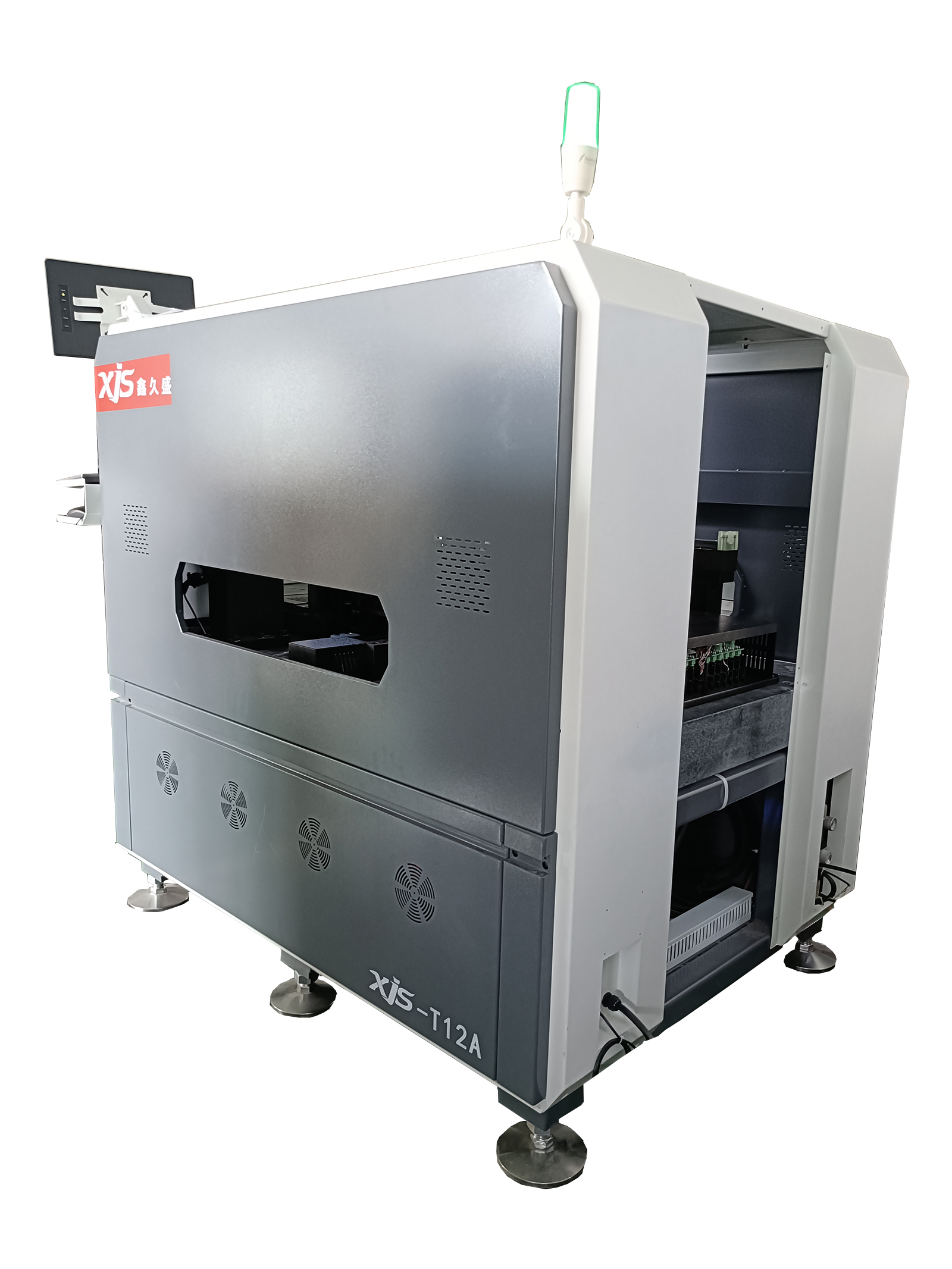

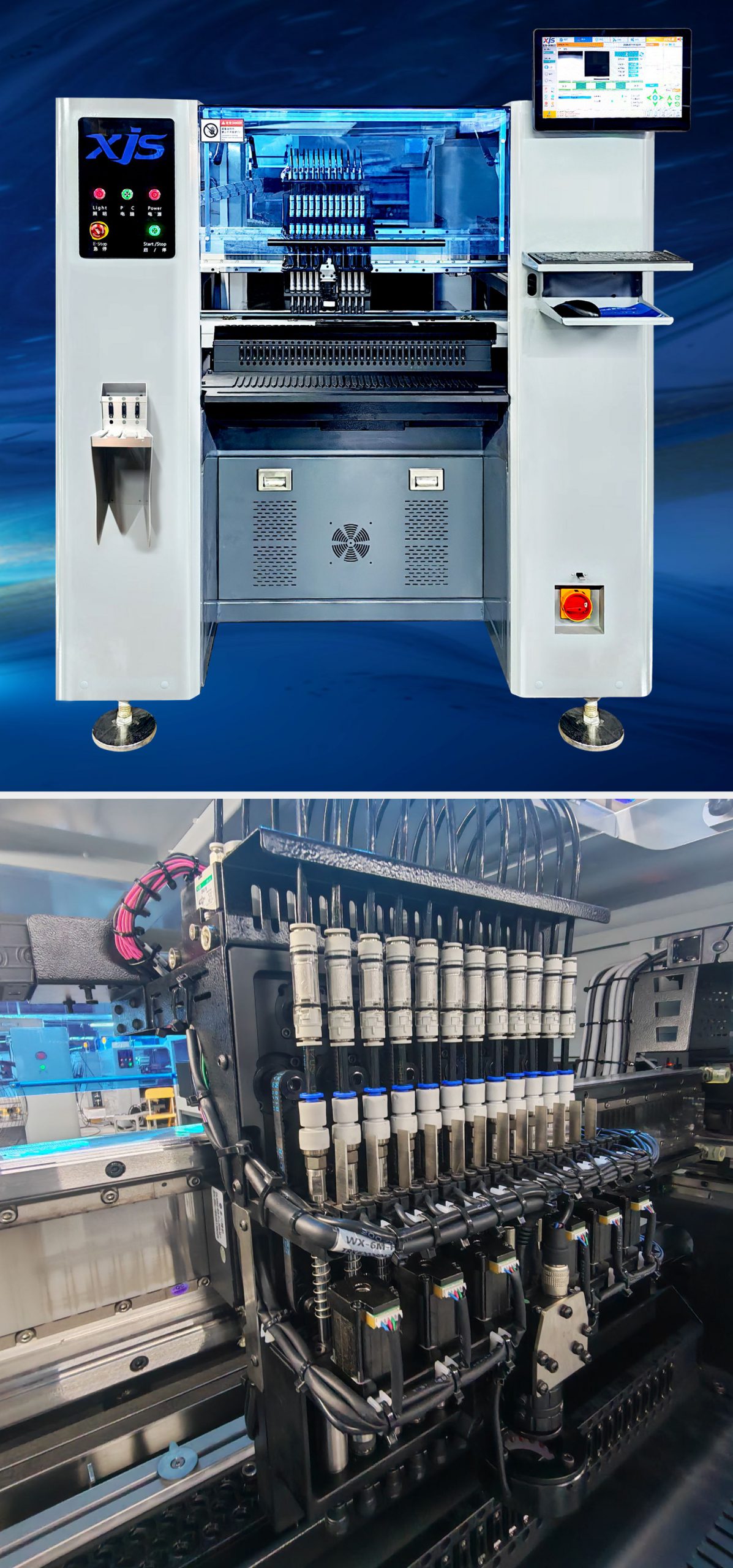

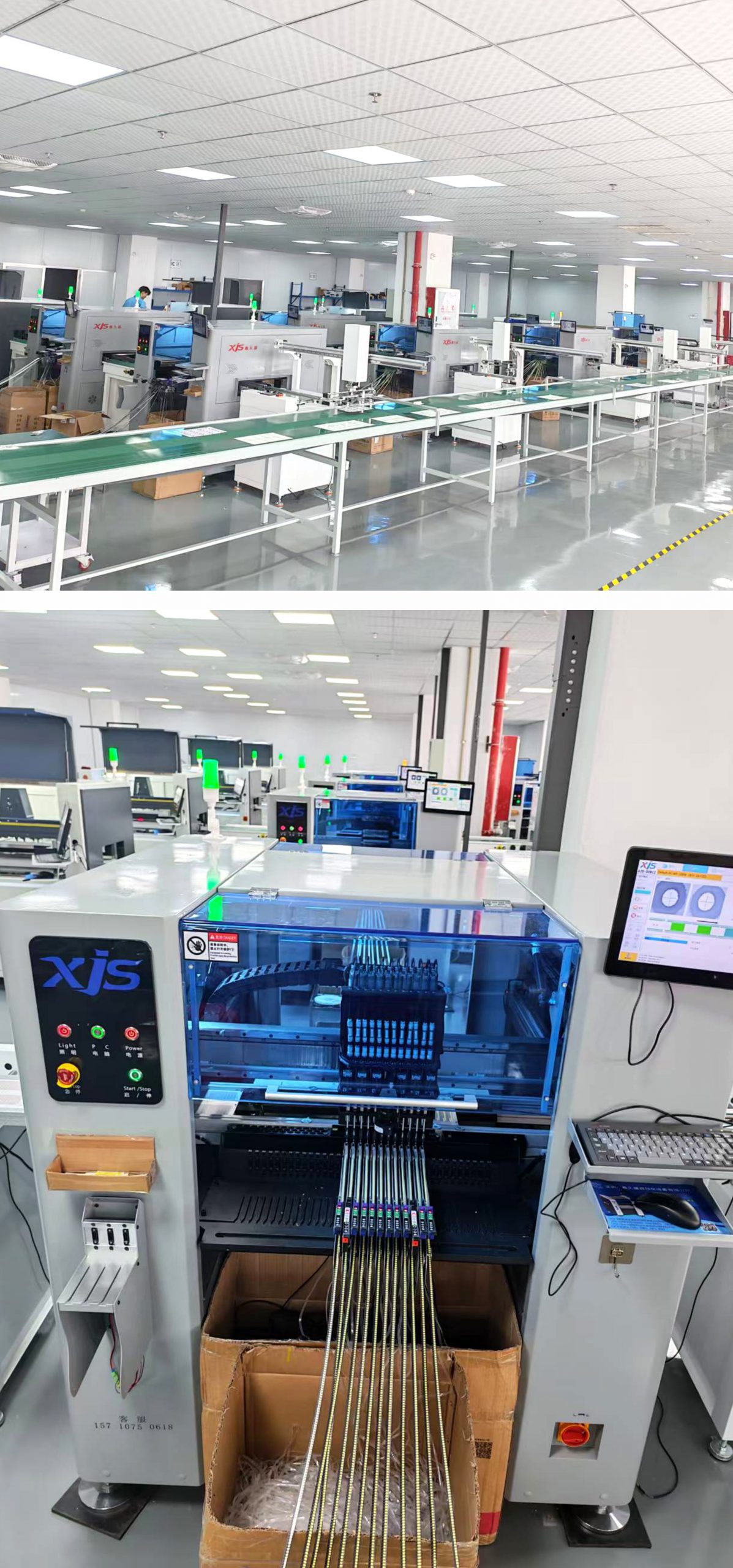

二、产品图片

Product picture









三、功能特点

Functional features

  • 全自动在线式设计,可放24种飞达,配套高清相机
  • X轴、Y轴都采用高精度的进口精密丝杆,提高设备运行精度及传运速度;
  • MARK视觉校正系统,对PCB板位置拍照识别,确保贴片精度。

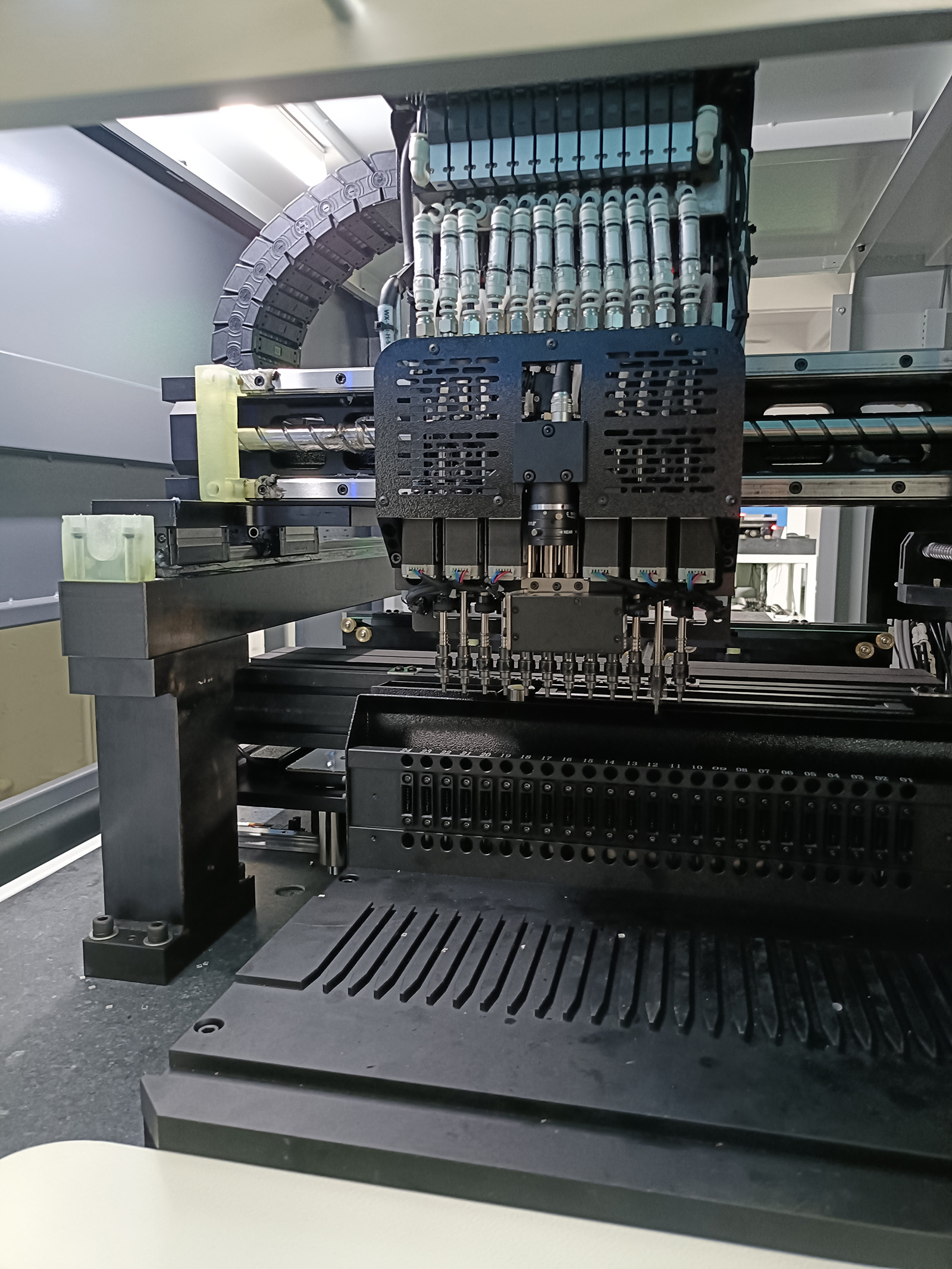

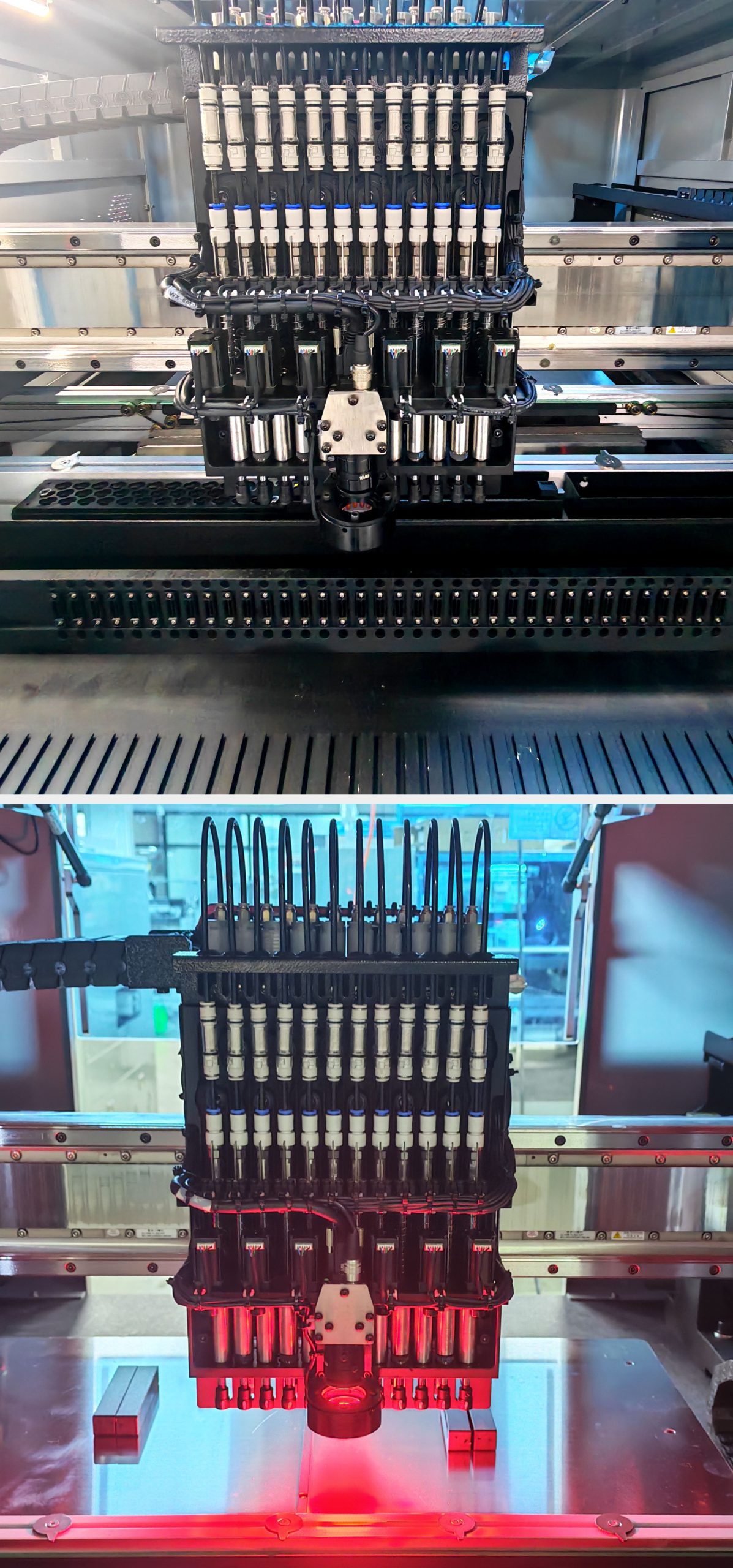

  • 贴片头Z轴采用12组进口花键,高效完成取料、放料;
  • 功能强大:配置不同的喂料器,可完成多种产品的贴装要求。

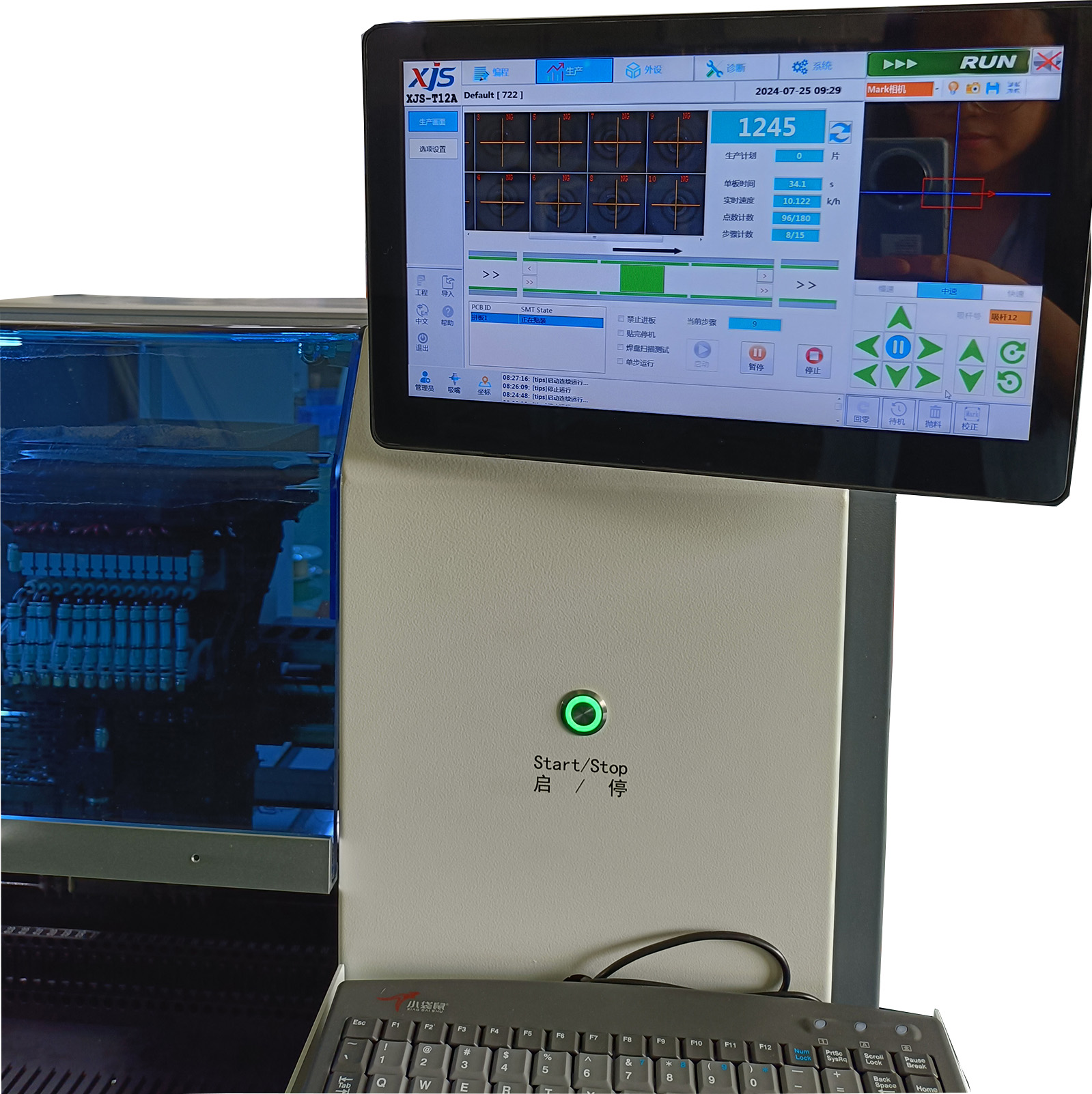

  • 操作简单:中文图形操作界面,易于操作。编程简洁,可储存编辑好文件,随意调用;
  • 维护方便:设计简洁,易于维护。更换配件成本低,维护成本低。
  • 整机软件、线路、硬件结构都由本公司自主研发,具有自主知识产权。
  1. Fully automatic online design, can play 24kinds of Feida, supporting HD camera
  2. Both x-axis and y-axis adopt high-precision imported precision screw rods to improve the equipment operation accuracy and transmission speed;
  3. Mark visual correction system is used to take photos of PCB position to ensure patch accuracy.

4.  12 sets of imported splines are adopted for z-axis of the pasting head to efficiently complete the                picking and discharging;

  1. Powerful function: different feeders can be configured to meet the mounting requirements of a variety of products.
  2. Simple operation: Chinese graphical operation interface, easy to operate. The programming is simple, which can store and edit files and call them at will;
  3. Easy maintenance: simple design and easy maintenance. The cost of replacing parts is low and the maintenance cost is low.
  4. The software, circuit and hardware structure of the whole machine are independently developed by the company with independent intellectual property rights.

四、应用范围

Scope of application

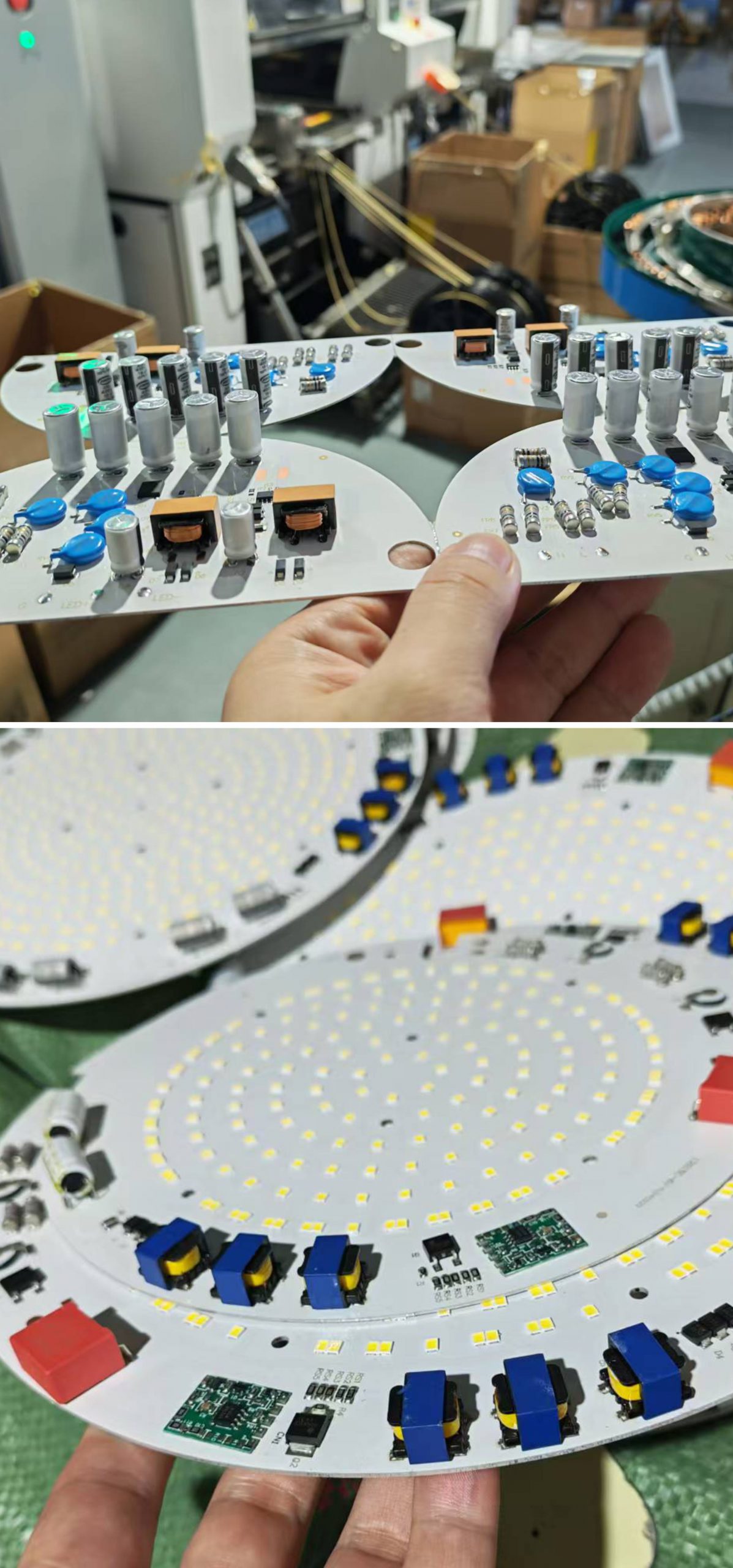

各种DOB产品、LED灯具、LED电源驱动、小家电电路板、数码产品等。

All kinds of DOB products, LED lamps, LED power drives, circuit boards of small household appliances, digital products, etc

五、技术参数 Specificati

Product Specification
Equipment model(型号) XJS-T12A

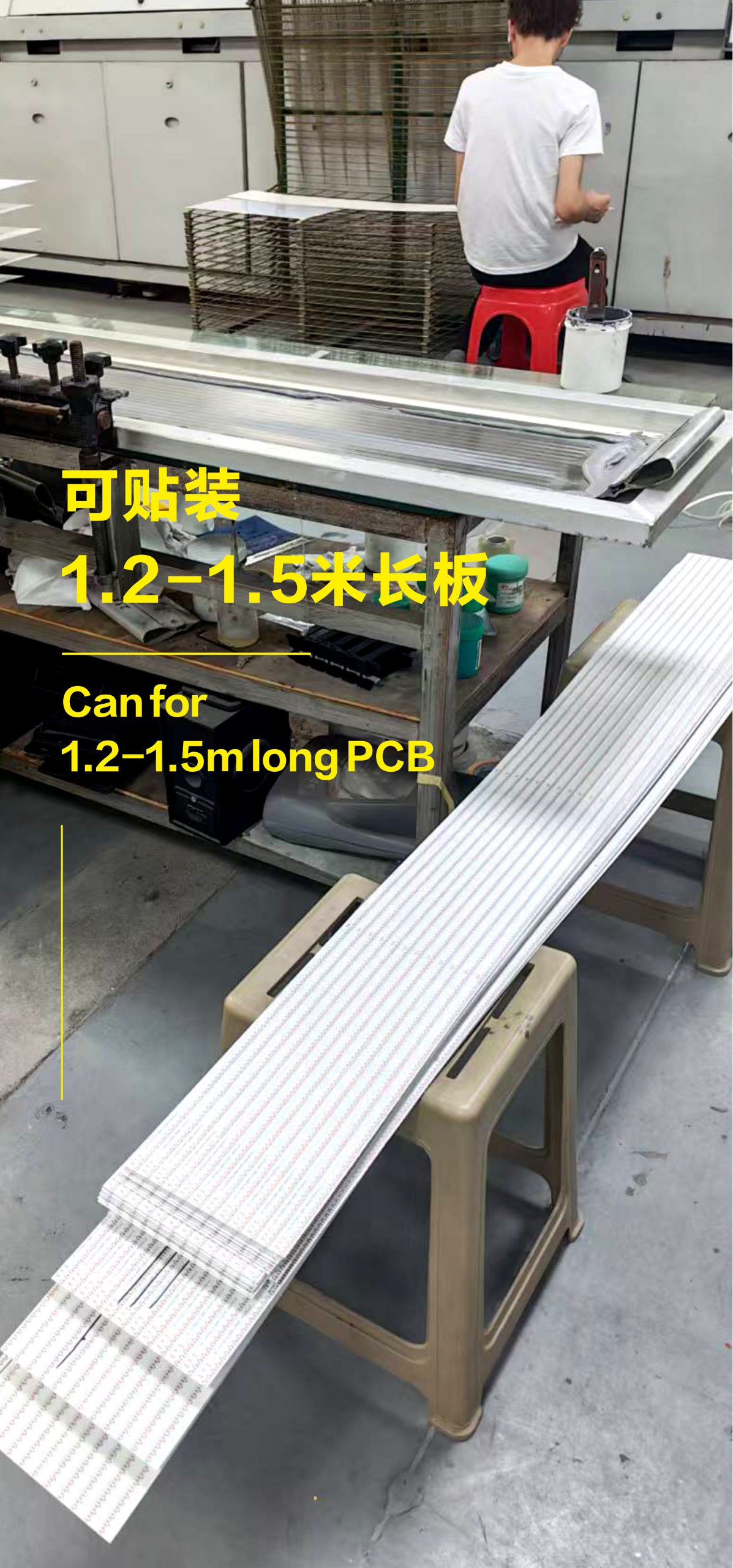

Maximum board area(最大电路板面积) 500(X)*400(Y)*10(Z)mm
Maximum movement range of Z axis(Z轴最大移动范围) 10mm
Maximum patch speed(最大贴片速度) 55000CPH
Average patch speed(平均贴片速度) 33000-55000CPH
Positioning accuracy(定位精度) 0.05mm
Buffer range of suction nozzle(吸嘴缓冲范围) 4.0
Power Supply (电源) 220V, 50Hz
Control mode(控制方式) PC computer
Compressed air(压缩空气) 0.65-0.75Mpa
Average power(平均功率) 3.5 KW
Feeder(喂料器) Electric feeder
Scope of application(适用范围) The resistor and capacitor above 0603 and various LED chips such as 2835,3528,3014,
4014,5050,5630,5730 and 7070 are compatible with various high-power chip mounting
Number of feeders available(可放喂料器数量) 24 feeder
Use motor(使用电机) Imported servo-motor
Mounting head(贴装头) 12 heads
Motion drive system Advanced AC servo system
component angle 0-360 degrees at any angle, synchronous rotation during movement
X/Y operation mode A new generation of linear interpolation linkage independently developed software
Gas source imported dual-mode servo-motor
Operating system Independent researched and development of Chinese and English systems by XJS
Programming mode Point-to-point teaching programming, visual programming, optimizable + coordinate import
Product weight 2200Kg
Machine structure  Marble platform
Appearance dimention 1300 mm*1550mm*1420mm
