多功能机H6A

Pick and Place machine 8heads

一、产品介绍

Product introduction

   XJS-H6A贴片机。全新升级产能、硬件和软件系统，全面解决小家电产品对贴装高度和精度的要求，解决掉料、卡料，速度，精度(热补偿)等问题，提高了生产效率和良品率，并且同时兼容托盘上料和飞达上料，大大降低了客户成本，目前在深圳、中山、江苏、浙江等已大量实用于客户工厂

For XJS-H6A placement machine, With upgraded capacity, hardware and software systems, it comprehensively meets SMD height/accuracy requirements for small appliances, solves material dropping/jamming issues, improves speed and accuracy (with thermal compensation), enhances production efficiency/yield rate, supports both tray and feeder loading to reduce costs, and has been widely used in factories in Shenzhen, Zhongshan, Jiangsu, Zhejiang and overseas market etc.

二、产品图片

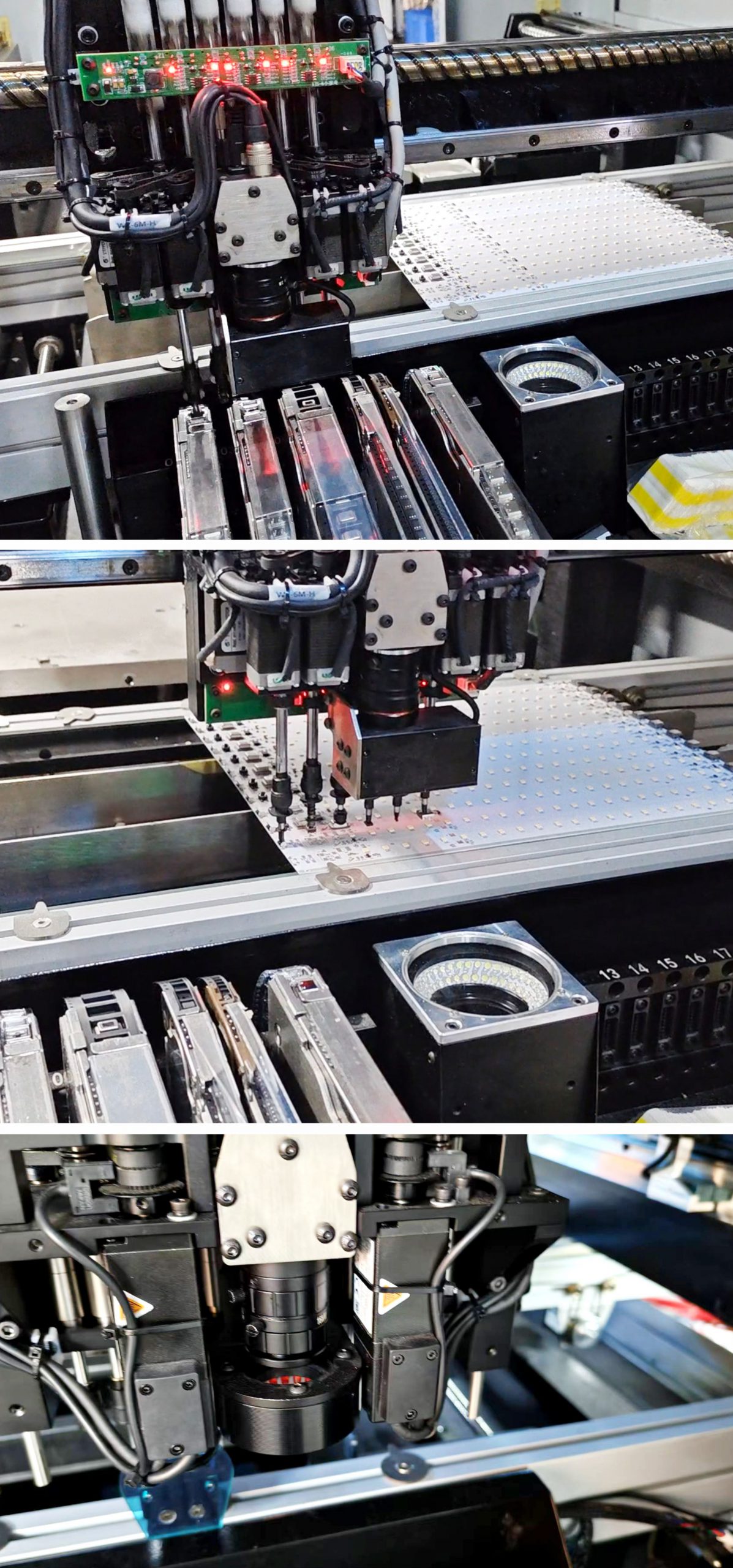

Product picture

三、功能特点

Functional features

• 全自动在线式设计,可放56种飞达，配套高清相机
• MARK视觉校正系统，对PCB板位置拍照识别，确保贴片精度。
• 贴片头Z轴采用12组进口花键，高效完成取料、放料；
• 功能强大：配置不同的喂料器，可完成多种产品的贴装要求。
• 操作简单：中文图形操作界面，易于操作。编程简洁,可储存编辑好文件,随意调用；
• 维护方便：设计简洁，易于维护。更换配件成本低,维护成本低。
• 整机软件、线路、硬件结构都由本公司自主研发，具有自主知识产权。

1. Fully automatic online design, can play 36kinds of Feida, supporting HD camera
2. Both x-axis and y-axis adopt high-precision imported precision screw rods to improve the equipment operation accuracy and transmission speed;
3. Mark visual correction system is used to take photos of PCB position to ensure patch accuracy.
4. 4.  12 sets of imported splines are adopted for z-axis of the pasting head to efficiently complete the picking and discharging;

5. Powerful function: different feeders can be configured to meet the mounting requirements of a variety of products.
6. Simple operation: Chinese graphical operation interface, easy to operate. The programming is simple, which can store and edit files and call them at will;
7. Easy maintenance: simple design and easy maintenance. The cost of replacing parts is low and the maintenance cost is low.
8. The software, circuit and hardware structure of the whole machine are independently developed by the company with independent intellectual property rights.

四、应用范围

Scope of application

各种DOB产品、LED灯具、LED电源驱动、小家电电路板、数码产品等。

All kinds of DOB products, LED lamps, LED power drives, circuit boards of small household appliances, digital products, etc
